A Dev's Guide to Creating ER Diagram Designs

Before you even think about writing a single line of Dart, you need a solid foundation for your data. That's where an Entity-Relationship Diagram (ERD) comes in. Think of it as the architectural plan for your app's database. It maps out exactly how your data will be stored, connected, and accessed, and it's your best defence against messy data and painful refactoring down the line.

Building the Blueprint for Your Flutter App

Jumping straight into coding without this blueprint is like building a house without a plan. You might get the walls up, but you'll soon find the plumbing doesn't connect and the electrical wiring is a tangled nightmare. For high-performance Flutter apps, renowned for their exceptional speed and slick user experience, a poorly designed database can quickly become a major bottleneck.

Why ERDs Are Crucial for Flutter Developers

As Flutter developers here in the UK, we're obsessed with building apps that are not just beautiful but also incredibly fast. An ERD directly supports this by forcing you to think critically about your data structure from day one. This upfront planning is what helps guarantee your app's back-end is just as efficient as its front-end.

A well-thought-out diagram gives you several massive advantages:

• Clarity and Communication: It’s a clear, visual map that everyone on the team—from developers to project managers—can actually understand. No more confusion.
• Improved Database Design: It helps you spot potential issues, redundant data, and flawed logic before a single piece of code is written.
• Efficiency in Development: With a clear data model in hand, developers can build features faster and with far fewer database-related bugs.
• Long-Term Scalability: A properly designed schema is infinitely easier to maintain, modify, and scale as your app's features and user base grow.

An ERD isn't just a technical document; it's a strategic tool. It translates fuzzy business requirements into a logical data structure, ensuring the final application truly meets the user's needs.

The Core Components You Will Master

Creating an ER diagram really boils down to working with three fundamental building blocks. Get these concepts down, and you can start designing any database, from a simple to-do list app to a complex e-commerce platform. If you want to explore building powerful applications further, our insights on Flutter development offer some valuable perspectives.

We're going to move past the abstract theory and get right into the practical side of ERDs from a developer's point of view. By the end, you'll have the confidence to start mapping out any data structure, no matter how complex it seems at first.

Decoding the Visual Language of ER Diagrams

Before you can build a coherent diagram, you need to speak its language. The symbols and notations in an ERD are the grammar of your database design, letting you map out complex logic in a way that’s clear and concise. Without a solid grasp of this visual language, trying to create an ER diagram that actually works for your app is a recipe for disaster.

The example above shows a conceptual model using what’s known as Chen notation. You can see the basic building blocks right there: entities in rectangles, relationships in diamonds, and attributes in ovals.

It clearly shows how a "Movie" is linked to a "Director" and a "Studio," illustrating the core connections that will define the database structure. It’s this kind of clarity that turns an abstract idea into a solid blueprint your developers can actually use.

The Core Shapes Explained

At its heart, an ERD is really just a few simple shapes that represent the core pieces of a database. Getting these down is the first step to designing a schema that your whole team can look at and immediately understand.

• Entities (Rectangles): These are the ‘nouns’ of your database. Think of them as distinct objects or concepts, like a User, Product, or Order in an e-commerce Flutter app.
• Attributes (Ovals): These are the properties that describe an entity. For our User entity, attributes would be things like userID, firstName, lastName, and email.
• Relationships (Diamonds): These are the ‘verbs’ that connect your entities. They show how two or more entities interact, like a User 'places' an Order.

Nailing this simple structure is the key to creating a diagram that anyone, from a stakeholder to a junior developer, can understand at a glance. It heads off miscommunication before it can start and makes sure everyone is on the same page.

Understanding Cardinality and Ordinality

Beyond the basic shapes, the real power of an ERD is its ability to lay down the rules that govern relationships. This is where cardinality and ordinality come into play. Simply put, cardinality defines the maximum number of connections between entities, while ordinality defines the minimum.

Let's take a classic Flutter app scenario: a social media platform. A User can create many Posts, but each Post is created by only one User. This is a classic one-to-many relationship.

By defining these numerical relationships from the get-go, you kill any ambiguity in your database logic. It forces you to answer tough questions early, preventing major architectural headaches that are a nightmare to fix later on.

Here are the most common types of cardinality you'll work with:

• One-to-One (1:1): One instance of an entity is linked to exactly one instance of another. A good example is a User having just one Profile.
• One-to-Many (1:M): One instance of an entity can be linked to many instances of another. Think of a Customer who can place many Orders.
• Many-to-Many (M:N): Many instances of one entity can be linked to many instances of another. For example, a Product can be in many Orders, and an Order can contain many Products.

Choosing Your Notation Style

Different notation styles are used to visualise these relationships, but Chen and Crow's Foot are two of the most popular. There isn’t a single "best" option; the right choice really boils down to your team's preference and how complex the project is.

To help you decide, here’s a quick look at the most common styles.

Comparing Common ER Diagram Notations

A quick look at popular ERD notations to help you decide which style is right for your project.

Ultimately, the goal is clarity. Pick the notation that best communicates your database structure to your team.

For what it's worth, Crow's Foot notation is often the go-to in professional settings because it's so concise. It puts attributes right inside the entity rectangle and uses clever symbols on the lines to show cardinality (the 'crow's foot' means 'many'). This makes the diagram way less cluttered and easier to read, especially for complex systems—a massive plus when you're designing a feature-rich Flutter application. Most modern diagramming tools like Lucidchart or Miro even default to this style because it's so practical.

From Concept to a Complete ER Diagram

Right, so we've got the visual language of Entity-Relationship Diagrams (ERDs) down. Now it's time to get our hands dirty and actually build one. Creating an ERD isn't some dark art; it's a repeatable process that turns your vague project ideas into a solid database blueprint. You start by figuring out the core bits of your system and end up with a clear map that your development team can use to build a robust and scalable Flutter application.

Let's walk through this together. We'll use a classic example that everyone gets: a simple e-commerce app built with Flutter. We'll build the diagram from the ground up, and you'll pick up techniques you can use on any project.

Nailing Down Your Core Entities

First things first, you need to identify your entities. This is the most critical part of the whole process. Think of entities as the main 'nouns' or objects in your system. A great way to find them is to simply read through your project requirements or user stories and pull out the key concepts.

For our e-commerce app, a requirement might be something like: "A customer should be able to place an order containing multiple products."

Just from that one sentence, three main entities jump out at us:

• Customer: The person buying things.
• Product: The item being sold.
• Order: The record of a transaction.

These nouns are the absolute foundation of our diagram. Don't worry about getting every tiny detail right at this stage. The goal is just to define the high-level buckets that will hold your application's data. Getting this right is fundamental—miss a key entity now, and you're signing up for a world of pain and rework later on.

Think of entities as the main characters in your app's story. If you miss a key character, the plot falls apart. The same is true for your database design. Always double-check your requirements to ensure you've identified all the essential players.

Giving Your Entities Meaningful Attributes

Once you know what your entities are, you need to give them properties, or attributes. These are just the specific bits of information that describe each entity. For every entity you've listed, ask yourself, "What do I actually need to know about this thing?"

Let's flesh out the attributes for our e-commerce entities:

• For a Customer, we’ll probably need CustomerID, FirstName, LastName, Email, and ShippingAddress.
• For a Product, the important details would be ProductID, Name, Description, Price, and StockQuantity.
• And for an Order, we'll need OrderID, OrderDate, TotalAmount, and OrderStatus.

While you're doing this, you absolutely must identify a primary key for each entity. This is the attribute (or sometimes a combination of them) that makes each record in a table completely unique. For instance, CustomerID ensures every customer is distinct, even if you have two people with the same name.

This is also when you'll start thinking about foreign keys. A foreign key is simply a primary key from one entity that you pop into another to link them together. To know which customer placed an order, the Order entity needs to have a CustomerID attribute. That CustomerID in the Order table is a foreign key, pointing back to the Customer table.

This structured way of defining entities and attributes is central to good data management. In the UK, with organisations increasingly focused on solid data foundations for things like AI, this kind of clarity is non-negotiable. A 2021 UK government-backed study found that data quality and consistency—both direct results of a well-planned ERD—are crucial for any data-driven project.

This process fits perfectly into a structured development lifecycle. If you’re curious about how this design phase slots into the bigger picture, checking out the UK mobile app development process explained in our guide will give you some valuable context.

Mapping Relationships and Cardinality

The final piece of the puzzle is connecting your entities. This is where you define their relationships and specify the cardinality—essentially, you’re adding the 'verbs' that describe how these entities interact and bring your database structure to life.

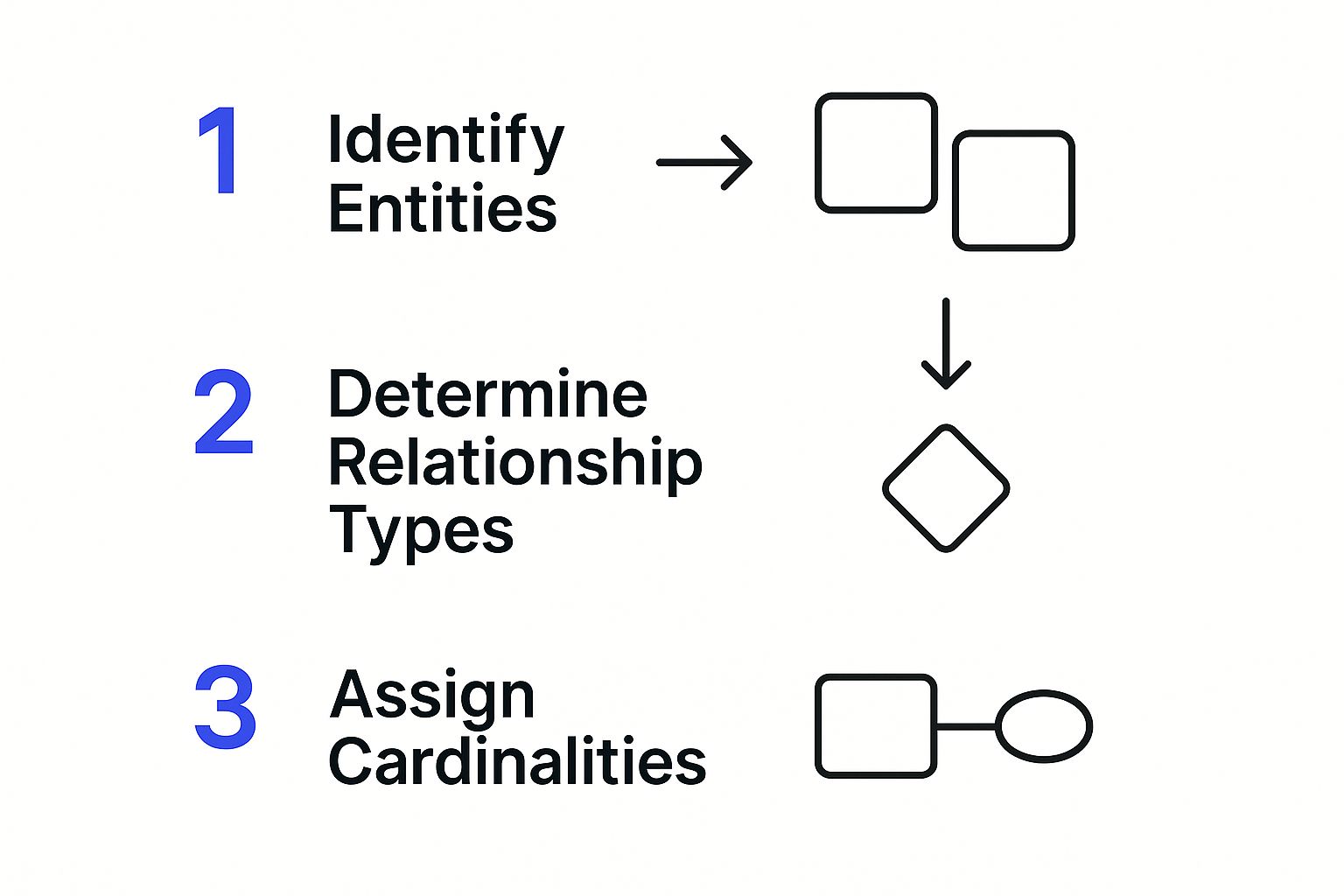

This image lays out the straightforward, step-by-step flow for defining these critical connections.

Following this sequence, from identifying entities to setting cardinalities, helps ensure no logical link gets missed. The result is a complete and accurate data model.

Let's apply this to our e-commerce app:

1. Customer and Order: A customer can place many orders, but any single order belongs to just one customer. This is a classic one-to-many (1:M) relationship. The Order entity gets the CustomerID as a foreign key to make the link.
2. Order and Product: This one's a bit trickier. An order can contain multiple products, and a single product can appear in many different orders over time. This creates a many-to-many (M:N) relationship.

Relational databases can't handle many-to-many relationships directly. The standard way to solve this is with a "linking" or "junction" table. We'll call ours Order_Item.

This new Order_Item table would have its own primary key (like OrderItemID) and would contain two crucial foreign keys:

• OrderID (from the Order entity)
• ProductID (from the Product entity)

It could also hold attributes that are specific to this link, like Quantity or PriceAtTimeOfPurchase. This junction table neatly breaks the messy M:N relationship down into two clean 1:M relationships: an Order has many Order_Item records, and a Product is in many Order_Item records.

And there you have it. By carefully identifying entities, assigning attributes with clear keys, and mapping relationships with precise cardinality, you've turned a conceptual idea into a logical, well-defined ER diagram. This blueprint is now ready to guide the actual database build, making sure your Flutter app is built on a solid, efficient, and scalable foundation.

Refining Your Design with Normalisation

You've mapped out your entities, attributes, and relationships. That first draft of your ER diagram is a huge milestone, but we're not quite done. The next step, normalisation, is where we take a decent design and make it truly professional—a schema that’s efficient, scalable, and won't give you headaches down the line.

Think of normalisation as a quality control pass for your ERD. It's a systematic process of organising your tables and columns to slash data redundancy. The main goal here is to stamp out nasty data anomalies that can creep in and corrupt your database over time. For the high-performance Flutter apps we build, getting this right is non-negotiable.

Why Normalisation Matters for App Performance

An unnormalised database is a ticking time bomb. It’s often riddled with redundant data, meaning the same bit of information is stored in multiple places. Imagine a customer changes their address. If you have to update it in several different tables and you miss one, your data instantly becomes inconsistent and unreliable.

This process prevents that mess by ensuring every piece of data has one logical, authoritative home. For a Flutter app, this translates directly to faster queries, simpler updates, and a much cleaner codebase. You end up with a database that’s predictable and robust—exactly the kind of foundation you need.

Normalisation isn't just some academic theory; it's a practical technique that has a massive impact on your app's long-term health. A bit of time invested in refining your ERD now will save you countless hours of debugging bizarre data integrity issues later.

The need for well-organised data is only growing. For instance, between 2020 and 2025, the use of AI in UK companies is set to jump from 15.1% to 22.7%. This shift means businesses are leaning more heavily on well-structured data to power complex algorithms, making skills in ER diagram creation more vital than ever. You can dig into these trends in the full government report on AI activity in UK businesses.

The First Normal Form (1NF)

The whole journey kicks off with the First Normal Form (1NF). The rule is simple: every cell in your table must hold a single, atomic value, and every record needs to be unique. No repeating groups, no multi-valued columns.

Let's say you had an Order entity where a Products attribute contained a comma-separated list like "Laptop, Mouse, Keyboard". That breaks 1NF because the Products cell is holding multiple distinct values.

To fix it, you'd split the information into separate tables. You'd keep the Order table, but you’d create a new OrderItem table just to handle the products. This new table links back to the original Order with a foreign key, making sure each cell only ever holds one piece of information.

The Second Normal Form (2NF)

Once your diagram is in 1NF, it's time for the Second Normal Form (2NF). This form tackles something called partial dependency. This happens when you have a composite primary key (a key made of multiple columns), and an attribute in the table depends on only part of that key, not the whole thing.

Let's go back to our e-commerce app and the OrderItem table. Its composite primary key is likely made up of OrderID and ProductID. Now, if we foolishly added ProductDescription to this table, we’d have a problem. The description depends only on the ProductID, not the combination of OrderID and ProductID.

That's a partial dependency. To get to 2NF, we'd simply move ProductDescription out of the OrderItem table and put it where it belongs: in the Product table, where it depends entirely on the ProductID primary key.

The Third Normal Form (3NF)

Last up, we have the Third Normal Form (3NF). For a table to be in 3NF, it must first be in 2NF, and all its attributes must depend only on the primary key. This rule is all about eliminating transitive dependency.

A transitive dependency is when a non-key attribute determines another non-key attribute. For example, if our Customer table included both Postcode and City, the City is really determined by the Postcode, which in turn depends on the CustomerID. The City doesn't depend directly on the primary key.

To fix this and achieve 3NF, you'd create a new Postcode entity with Postcode as its primary key and City as an attribute. The Customer table would then just hold a Postcode foreign key, neatly cutting out the transitive dependency.

By working through these three normal forms, you systematically clean up your data model, kill redundancy, and build a highly efficient schema. The result is a rock-solid database blueprint that sets your Flutter application up for long-term success.

Essential Tools and Best Practices

A beautifully designed Entity-Relationship Diagram is your database blueprint, but its real value comes down to the tools you use and the habits you form. Getting this right from the start ensures your diagram is clear, easy to maintain, and a genuinely useful communication tool for everyone on the team.

The right software can turn ER diagramming from a chore into a seamless part of your workflow. The options are vast, from simple drag-and-drop web tools to powerful platforms that hook directly into your development pipeline. Your final choice will likely depend on your project's complexity, team size, and frankly, what feels most natural to you.

Choosing Your ER Diagram Software

For developers who just need to get a diagram built and shared, a few tools consistently come out on top. Each one offers a slightly different way of working.

• Lucidchart & Draw.io: These are the go-to online tools for a reason. With their drag-and-drop interfaces and ready-made ERD shapes, they're fantastic for visual thinkers. They're perfect for hashing out conceptual or logical diagrams, especially when you need to share them with non-technical stakeholders who won't want to decipher code.
• dbdiagram.io: This one is built for developers, by developers. Instead of wrestling with shapes and lines, you write a simple, clean markup language to define your tables and relationships. It then magically generates a visual diagram for you. It's a brilliant approach if you're more comfortable in a code editor.
• ERDPlus: A very solid, web-based tool that’s well-respected in the industry. It's a step up, allowing you to not only create ERDs but also relational schemas. It can even generate the SQL Data Definition Language (DDL) statements needed to actually build your database structure.

The best tool is the one your team will actually use. Consistency is everything. A slightly imperfect but universally adopted diagram in Lucidchart is far more valuable than a "perfect" one built in a specialist tool that nobody else on the team can open or update.

Indispensable Best Practices for Flutter Developers

Beyond the software, a few key practices will lift your diagrams from rough sketches to professional-grade architectural documents. For anyone building scalable Flutter apps, these habits are non-negotiable.

Don't forget that a clear ERD is more than just a technical asset; it's also a key piece of documentation for compliance. Data management in the UK is closely monitored, and formal data modelling is a big part of getting it right. The 2024 UK Business Data Survey found that 74% of large businesses found the Information Commissioner's Office (ICO) guidance on data handling easy to follow. This clarity is precisely why UK companies use tools like ERDs—to prove their data architecture aligns with data protection laws. You can read more in the UK Business Data Survey 2024.

Establish Consistent Naming Conventions

This sounds small, but trust me, it’s a game-changer. Decide on a naming scheme early on and apply it with ruthless consistency.

• Table Names: Use PascalCase (e.g., UserDetails) or snake_case (e.g., user_details). Just pick one and stick with it.
• Column Names: The same goes here. Choose camelCase (e.g., firstName) or snake_case (e.g., first_name).
• Primary Keys: A common and sensible convention is TableNameID (like UserID) or simply id.
• Foreign Keys: Name them after the primary key you're referencing. For instance, the Orders table would have a UserID column to link back to Users.

When your schema is predictable, new developers can get up to speed in a fraction of the time without having to constantly ask what things mean.

Document and Version Control Your Schema

Your ER diagram is a living document; it will change and grow as your app does. So, treat it like one. Keep it under version control, right alongside your source code.

Storing your diagram file (or the dbdiagram.io code that generates it) in Git means you can track changes over time, look back at previous versions, and understand the "why" behind certain design decisions.

This is a cornerstone of modern development. To see how this fits into the bigger picture, have a read of our guide on what is continuous integration is for Flutter apps. When you integrate schema changes into your CI/CD pipeline, you ensure your database and your application code never fall out of sync.

And finally, add notes and descriptions directly onto your ERD. Explain that tricky relationship, justify why an attribute is nullable, and document key business rules. This transforms your diagram from a simple picture into the single source of truth for your entire data model.

Common ER Diagram Questions Answered

Even the best-laid plans run into questions, and database design is no exception. It’s one thing to learn the theory, but it's another thing entirely to apply it to a real-world project. Getting tripped up on the small details now can lead to massive headaches later.

So, let's tackle a few of the most common questions that pop up when you're in the thick of creating an ER diagram. The goal here is to help you move forward with confidence and build a solid foundation for your Flutter app.

What Is the Biggest Mistake to Avoid When Creating an ER Diagram?

If I had to pick just one, it's this: incorrectly defining relationships and their cardinalities. It sounds simple, but this is the single biggest mistake I see developers make, and its ripple effects are huge.

For example, imagine you accidentally define the link between a User and their Orders as a one-to-one relationship. You’ve just fundamentally broken your e-commerce app before you've even written a line of code. A user can now only ever have one order. This kind of architectural flaw is an absolute nightmare to fix once the database is live and full of real data.

Always, always pressure-test your relationships against real-world scenarios. Think through the logic. Can a customer really only have one address? Can a product only belong to one category? Get this right, and you've dodged a massive bullet.

How Detailed Should My ER Diagram Be?

This is a great question, and the answer is: it depends entirely on who you're talking to. Your ER diagram is a communication tool, first and foremost. A single project might actually need several versions of its ERD for different purposes.

• Conceptual ERD: This is your 30,000-foot view. It shows just the main entities and how they’re connected. It’s perfect for walking stakeholders or non-technical team members through your plan without getting lost in the weeds.
• Logical ERD: Now we're adding more detail. This version includes attributes, primary keys, and foreign keys. It's the core blueprint for developers, laying out the entire structure without locking you into a specific database technology just yet.
• Physical ERD: This is the full-blown, production-ready schematic. It specifies everything: data types (like VARCHAR or INT), constraints, indexing, and other database-specific details.

For actually building a Flutter app, you'll need a detailed logical or physical diagram. Your development team needs an unambiguous plan to work from.

Your ER diagram is a communication tool. Tailor its complexity to your audience. A simple diagram that everyone understands is far more valuable than a technically perfect one that just causes confusion.

Should I Create an ERD for a NoSQL Database Like Firebase?

Yes, absolutely. I hear this question a lot, and the answer is always a resounding yes.

While NoSQL databases like Firebase are schema-less and don't enforce rigid relational rules, that doesn't mean you should skip the planning phase. In fact, it makes it even more important.

Sketching out an ER-style diagram for a NoSQL database forces you to think critically about your data structure. How will your collections be organised? What data will be nested? How will you link different pieces of information? It’s all about promoting consistency and making sure the whole team understands how the data flows. For a Flutter app, where a snappy UI is everything, a well-planned NoSQL structure is vital for optimising your data queries and building a fast, responsive experience.
